Pro Sport Line

Available with twin inboards or twin outboards to move this striking hull design. It has a variable chine width, narrow at the bow to cut through waves and wide at the stern to get up on plane quickly and add stability at slow speeds. The robust cabin, available with galley and table is finished to the highest standard with superior materials. This vessel is fully customizable to suit your individual needs.

Pro Sport M31

  • Specifications
  • LOA (including motor bracket) - 7.01m / 31’7”
  • Beam - 2.44m / 10’6””
  • Height of sides - 0.61m / 2’2”
  • Bottom width - 2.08m / 6’10”
  • Approx. Dry Weight - 4,988kg / 11,000lbs
  • Deadrise - Variable 20 deg
  • Fuel Capacity - 680L / 210 USG
  • Maximum HP - 900 hp
  • Aluminum Thickness Bottom (5086) - 1/4”
  • Aluminum Thickness Sides (5086) - 3/16”
  • Aluminum Thickness Cabin (5052) - 5/32”
  • Cockpit Length - 8’4”/2.54m
  • Cabin Length - 9’4”/4.84m
  • V-Berth Length - 8’9”/2.67m
  • Cabin Headroom - 6’8”/2.03m
  • Transom Storage Bin Volume - 68 L / 18 USG
  • Electronics Features
  • Premium dash switch and gauge panel
  • Marine color coded wire harness with water tight connections
  • 3 Electric Rule 2000 gph auto bilge pumps
  • High water bilge alarm
  • Hella navigation lights package
  • Lumetic dimmable interior LED lighting
  • Dual engine battery management system with remote panel
  • Trim tabs
  • Compact electric horn
  • USB outlet
  • Aft cabin LED decklight
  • 3 Group 31 batteries
  • Battery Management System
  • Hull Features
  • 5086 Marine grade aluminum hull
  • 5052 Marine grade aluminum cabin
  • Full-length Internal Keel
  • Engineered full-length chines
  • Wide welded gunnels
  • Fully welded external rub rails/hull stiffness
  • Anchor rope locker; self-draining with access hatch
  • Water-tight cabin bulkheads with diamond sea glaze weather-tight door
  • Aluminum framed Diamond Sea Glaze side slider safety glass windows with screen
  • Aluminum framed Diamond Sea Glaze aft slider safety glass windows with screen
  • Heavy Duty Ongaro pantographic Windshield wiper
  • Raised self-bailing cockpit deck
  • Raised transom fish/storage locker with drain
  • Integrated offshore motor bracket
  • Welded bow eye with a stainless sleeve
  • 11” Custom cleats
  • Bolt-on sacrificial anodes
  • Aluminum thru-hull fittings with stainless steel ball valves
  • Aluminum exterior cabin roof rails
  • Welded aluminum bow pulpit
  • Cabin Features
  • Shockwave S5 suspension module with Corbin helm seat on slider
  • Shockwave S5 suspension module with Corbin navigator seat
  • Premium handcrafted black walnut storage cabinets with drawers and stainless latches
  • Custom dash panel for flush mounted electronics
  • Easy care marine vinyl floor
  • Cup holders
  • Soft touch headliner
  • Soft touch wall panels
  • Custom defrost systemCoating
  • Coating
  • Zolatone cabin walls & interior
  • Zolatone cuddy walls
  • Easy care marine vinyl interior floor
  • 3M vinyl wrap cowling & dodger

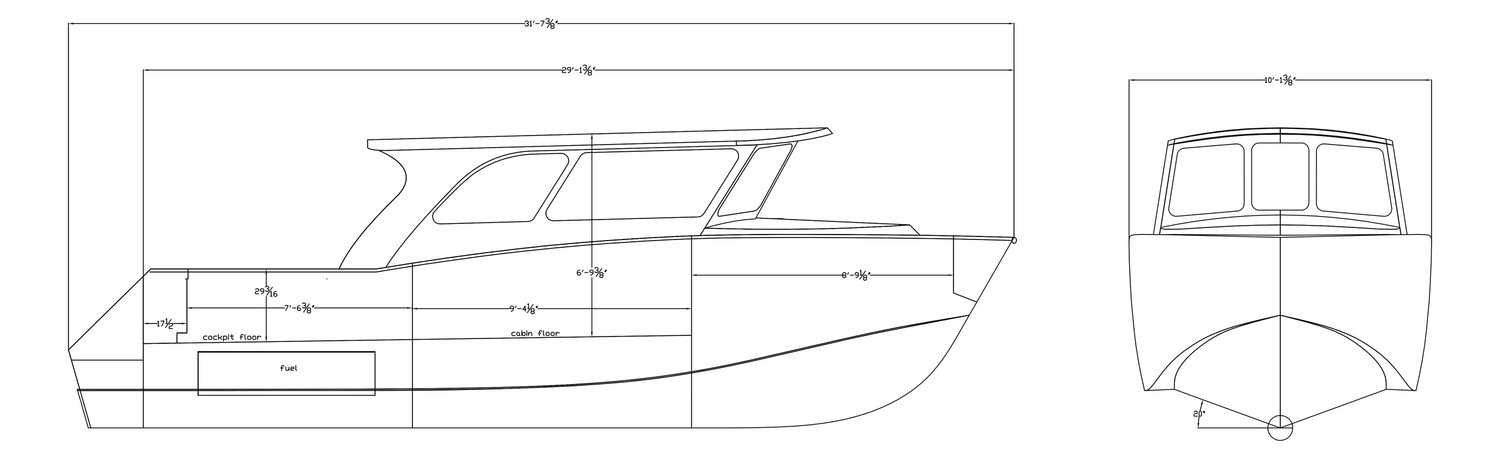

Diagram

Pro Sport M38

  • Specifications
  • LOA (including motor bracket) - 12.4m / 40’9”
  • Beam - 3.66m / 12”
  • Height of sides - 0.61m / 2’2”
  • Bottom width - 3.0m / 10’
  • Approx. Dry Weight - 8391kg / 18,500lbs
  • Deadrise - Variable 20 deg
  • Fuel Capacity - 1514L / 400 USG
  • Maximum HP - 900 hp
  • Aluminum Thickness Bottom (5086) - 1/4”
  • Aluminum Thickness Sides (5086) - 3/16”
  • Aluminum Thickness Cabin (5052) - 5/32”
  • Cockpit Length - 3.5m / 11’6”
  • Cabin Length - 3.6m / 11’10”
  • V-Berth Length - 3.5m / 11’4”
  • Cabin Headroom - 2.1m / 7’
  • Electronics Features
  • Premium dash switch and gauge panel
  • Marine color coded wire harness with water tight connections
  • 3 Electric Rule 2000 gph auto bilge pumps
  • High water bilge alarm
  • Hella navigation lights package
  • Lumetic dimmable interior LED lighting
  • Dual engine battery management system with remote panel
  • Trim tabs
  • Compact electric horn
  • USB outlet
  • Aft cabin LED decklight
  • 3 Group 31 batteries
  • Battery Management System
  • Hull Features
  • 5086 Marine grade aluminum hull
  • 5052 Marine grade aluminum cabin
  • Full length Internal Keel
  • Engineered full-length chines
  • Wide welded gunnels
  • Fully welded external rub rails/hull stiffness
  • Anchor rope locker; self-draining with access hatch
  • Water-tight cabin bulkheads with diamond sea glaze weather tight door
  • Aluminum framed Diamond Sea Glaze side slider safety glass windows with screen
  • Aluminum framed Diamond Sea Glaze aft slider safety glass windows with screen
  • Heavy Duty Ongaro pantographic Windshield wiper
  • Raised self-bailing cockpit deck
  • Raised transom fish/storage locker with drain
  • Welded bow eye with a stainless sleeve
  • 11” Custom cleats
  • Bolt-on sacrificial anodes
  • Aluminum thru-hull fittings with stainless steel ball valves
  • Aluminum exterior cabin roof rails
  • Welded aluminum bow pulpit
  • Cabin Features
  • Shockwave S5 suspension module with Corbin helm seat on slider
  • Shockwave S5 suspension module with Corbin navigator seat
  • Premium handcrafted black walnut storage cabinets with drawers and stainless latches
  • Custom dash panel for flush-mounted electronics
  • Easy care marine vinyl floor
  • Cup holders
  • Soft touch headliner
  • Soft touch wall panels
  • Custom defrost system
  • Coating
  • <
  • Zolatone cabin walls & interior
  • Zolatone cuddy walls
  • Easy care marine vinyl interior floor
  • 3M vinyl wrap cowling & dodger

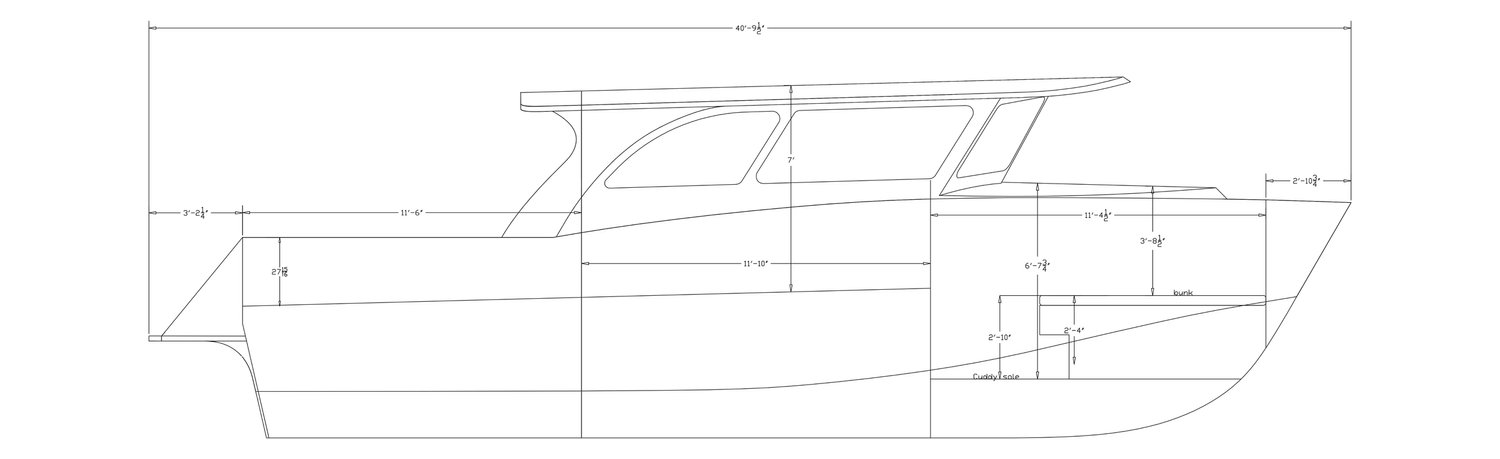

Diagram
