Commercial Sport Line
A blend of power and efficiency, with a touch of elegance, make up the backbone of the Explorer series. These outboard-powered 23-25ft models are available with a short cabin as a 4-6 passenger vessel or a long cabin as an 8-passenger. This series boasts a fully-loaded cruise speed of 32 knots and a top speed of 48 knots. The refined V-hull slices through the water like a hot knife through butter, keeping you and your crew comfortable and safe when the chop picks up. There is plenty of deck space if you need to take a break from your adventure and get in some fishing. Various cabin/cuddy layouts are available to meet your needs.
CommSport 29
- Specifications
- LOA (including extended cockpit) - 9.45m / 31’
- Beam - 3.96m / 13’4”
- Height of sides - 0.61m / 2’2”
- Bottom width - 3m / 10’
- Approx. Dry Weight - 4535kg / 10,000 lbs
- Deadrise - Variable 20 deg
- Fuel Capacity - 946L / 250 USG
- Maximum HP - 900 hp
- Aluminum Thickness Bottom (5086) - 1/4”
- Aluminum Thickness Sides (5086) - 3/16”
- Aluminum Thickness Cabin (5052) - 5/32”
- Cockpit Length - 4.5m / 14’11 1/2”
- Cabin Length - 2.1m / 6’11”
- V-Berth Length - 1.3m / 4’4”
- Cabin Headroom - 1.98 / 6’6”
- Hull Features
- 5086 Marine grade aluminum hull
- 5052 Marine grade aluminum cabin
- Full-length Internal Keel
- Engineered full-length chines
- Wide welded gunnels
- Fully welded external rub rails/hull stiffness
- Anchor rope locker; self-draining with access hatch
- Water-tight cabin bulkheads with diamond sea glaze weather-tight door
- Aluminum framed Diamond Sea Glaze side slider safety glass windows with screen
- Aluminum framed Diamond Sea Glaze aft slider safety glass windows with screen
- Heavy Duty Ongaro pantographic Windshield wipers
- Raised self-bailing cockpit deck
- Integrated fish hold
- Welded bow eye with a stainless sleeve
- 9”x 9” custom cast aluminum bow and stern weld on cleats
- Bolt-on sacrificial anodes
- Aluminum thru-hull fittings with stainless steel ball valves
- Aluminum exterior cabin roof rails
- Welded aluminum bow pulpit
- Electronics Features
- Premium dash switch and gauge panel
- Marine color-coded wire harness with water-tight connections
- 3 Electric Rule 2000 gph auto bilge pumps
- High water bilge alarm
- Hella navigation lights package
- Lumetic dimmable interior LED lighting
- Dual engine battery management system with remote panel
- Trim tabs
- Compact electric horn
- USB outlet
- Aft cabin LED deck light
- 3 Group 31 batteries
- Battery Management System
- Cabin Features
- Shockwave S5 suspension module with Corbin helm seat on slider
- Shockwave S5 suspension module with Corbin navigator seat
- Premium handcrafted black walnut storage cabinets with drawers and stainless latches
- Custom dash panel for flush-mounted electronics
- Easy care marine vinyl floor
- Cup holders
- Soft touch headliner
- Soft touch wall panels
- Custom defrost system
- Coating
- Zolatone cabin walls & interior
- Zolatone cuddy walls
- Easy care marine vinyl interior floor
- 3M vinyl wrap cowling & dodger

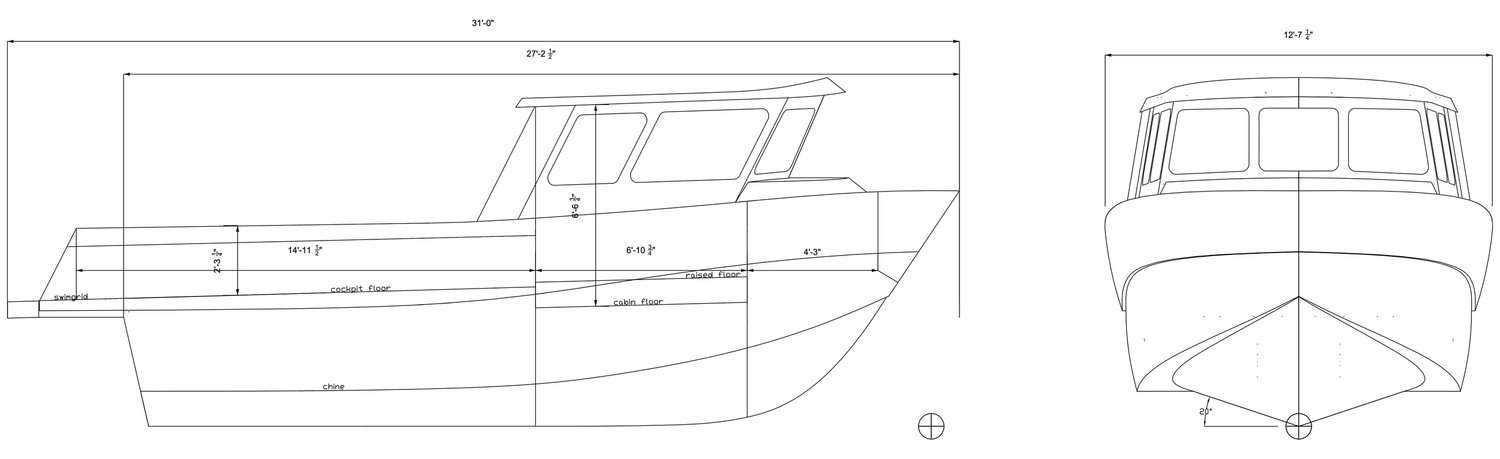

Diagram
CompSport 33
- Specifications
- LOA (including extended cockpit) - 11.35m / 34’3”
- Beam - 3.96m / 13’4”
- Height of sides - 0.61m / 2’2”
- Bottom width - 3m / 10’
- Approx. Dry Weight - 5987kg / 13,200 lbs
- Deadrise - Variable 20 deg
- Fuel Capacity - 946L / 250 USG
- Maximum HP - 900 hp
- Aluminum Thickness Bottom (5086) - 1/4”
- Aluminum Thickness Sides (5086) - 3/16”
- Aluminum Thickness Cabin (5052) - 5/32”
- Cockpit Length - 4.5m / 14’ 7”
- Cabin Length - 2.34m / 7’8”
- V-Berth Length - 1.9m / 6’4”
- Cabin Headroom - 1.98 / 6’6”
- Hull Features
- 5086 Marine grade aluminum hull
- 5052 marine-grade aluminum cabin
- Full-length Internal Keel
- Engineered full-length chines
- Wide welded gunnels
- Fully welded external rub rails/hull stiffness
- Anchor rope locker; self-draining with access hatch
- Heavy Duty Ongaro pantographic Windshield wiper
- Raised self-bailing cockpit deck
- Welded bow eye with a stainless sleeve
- 9”x 9” custom cast aluminum bow and stern weld on cleats
- Bolt on sacrificial anodes
- Aluminum thru-hull fittings with stainless steel ball valves
- Aluminum exterior cabin roof rails
- Welded aluminum bow pulpit
- Electronics Features
- Premium dash switch and gauge panel
- Marine color coded wire harness with water tight connections
- 3 Electric Rule 2000 gph auto bilge pumps
- High water bilge alarm
- Hella navigation lights package
- Lumetic dimmable interior LED lighting
- Dual engine battery management system with remote panel
- Trim tabs
- Compact electric horn
- USB outlet
- Aft cabin LED decklight
- 3 Group 31 batteries
- Battery Management System
- Cabin Features
- Shockwave S5 suspension module with Corbin helm seat on slider
- Shockwave S5 suspension module with Corbin navigator seat
- Premium handcrafted black walnut storage cabinets with drawers and stainless latches
- Custom dash panel for flush-mounted electronics
- Easy care marine vinyl floor
- Cup holders
- Soft touch headliner
- Soft touch wall panels
- Custom defrost system
- Coating
- Zolatone cabin walls & interior
- Zolatone cuddy walls
- Easy care marine vinyl interior floor
- 3M vinyl wrap cowling & dodger

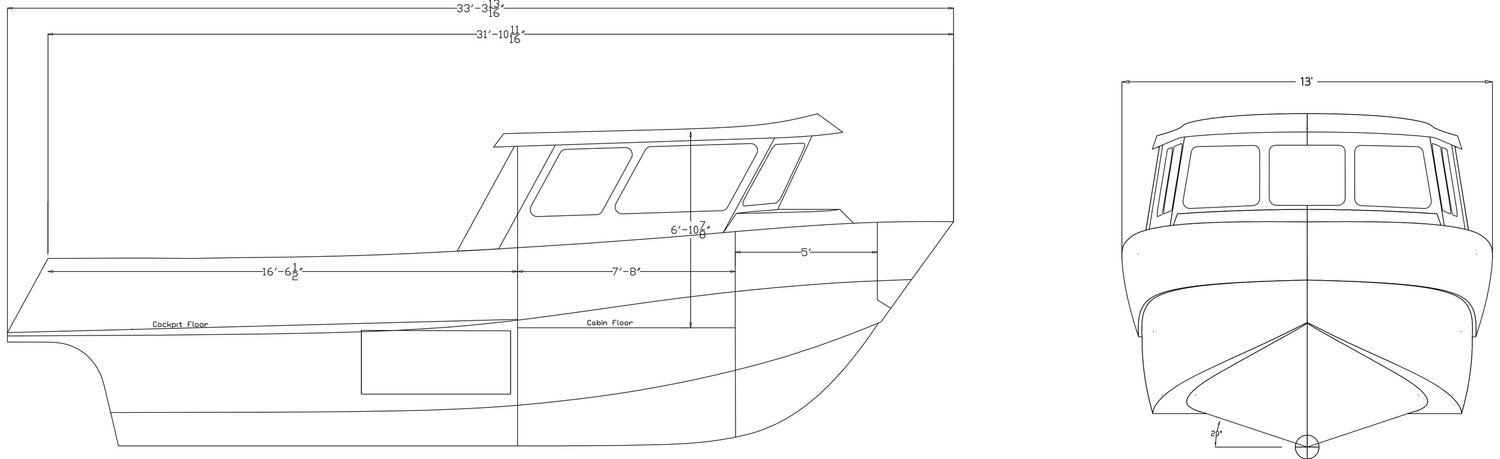

Diagram
ComSport 37
- Specifications
- LOA (including extended cockpit) - 11.35m / 37’3”
- Beam - 3.96m / 13’4”
- Height of sides - 0.61m / 2’2”
- Bottom width - 3m / 10’
- Approx. Dry Weight - 7484kg / 16,500lbs
- Deadrise - Variable 20 deg
- Fuel Capacity - 1514L / 400 USG
- Maximum HP - 900 hp
- Aluminum Thickness Bottom (5086) - 1/4”
- Aluminum Thickness Sides (5086) - 3/16”
- Aluminum Thickness Cabin (5052) - 5/32”
- Cockpit Length - 5.13m / 16’ 10”
- Cabin Length - 3m / 10’
- V-Berth Length - 1.9m / 6’4”
- Cabin Headroom - 1.98 / 6’6”
- Hull Features
- 5086 Marine grade aluminum hull
- 5052 marine-grade aluminum cabin
- Full-length Internal Keel
- Engineered full-length chines
- Wide welded gunnels
- Fully welded external rub rails/hull stiffness
- Anchor rope locker; self-draining with access hatch
- Heavy Duty Ongaro pantographic Windshield wiper
- Raised self-bailing cockpit deck
- Welded bow eye with a stainless sleeve
- 9”x 9” custom cast aluminum bow and stern weld on cleats
- Aluminum 1 1/4” bow rail
- Bolt-on sacrificial anodes
- Aluminum thru-hull fittings with stainless steel ball valves
- Aluminum exterior cabin roof rails
- Welded aluminum bow pulpit
- Electronics Features
- Premium dash switch and gauge panel
- Marine color-coded wire harness with water-tight connections
- 3 Electric Rule 2000 gph auto bilge pumps
- High water bilge alarm
- Hella navigation lights package
- Lumetic dimmable interior LED lighting
- Dual engine battery management system with remote panel
- Trim tabs
- Compact electric horn
- USB outlet
- Aft cabin LED deck light
- 3 Group 31 batteries
- Battery Management System
- Cabin Features
- Shockwave S5 suspension module with Corbin helm seat on slider
- Shockwave S5 suspension module with Corbin navigator seat
- Premium handcrafted black walnut storage cabinets with drawers and stainless latches
- Custom dash panel for flush-mounted electronics
- Easy care marine vinyl floor
- Cup holders
- Soft touch headliner
- Soft touch wall panels
- Custom defrost system
- Coating
- Zolatone cabin walls & interior
- Zolatone cuddy walls
- Easy care marine vinyl interior floor
- 3M vinyl wrap cowling & dodger

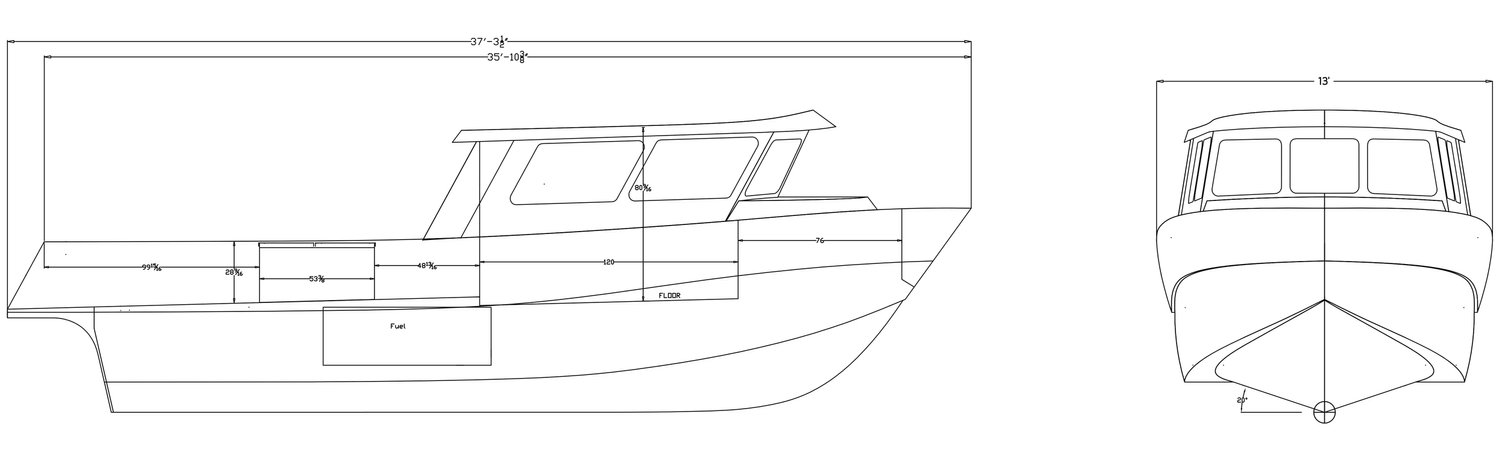

Diagram
