Waker Boats Center Console Line
Walker’s Center Console boats are built to get you offshore with an exhilarating top speed. This series of Center Console aluminum boats are constructed with an all-welded aluminum v-hull, so when the water gets big, these boats will get you there safely. This lineup includes 18, 22 and 26 feet versions to meet your coastal boating needs. The walk-around console is ideal for halibut drifting and running around when the reels start singing.
CC18
- Specifications
- LOA (including motor bracket) - 6.85m / 18’8”
- Beam - 2.44m / 8’4”
- Height of sides - 0.61m / 2’2”
- Bottom width - 2.08m / 6’10”
- Approx. Dry Weight - 1988kg / 2500lbs
- Deadrise - Variable 15 deg
- Fuel Capacity - 128L / 34 USG
- Maximum HP - 150 hp
- Aluminum Thickness Bottom (5086) - 1/4”
- Aluminum Thickness Sides (5086) - 3/16”
- Aluminum Thickness Console (5052) - 5/32”
- Hull Features
- 5086 Marine-grade aluminum hull
- 5052 Marine-grade aluminum console
- Full-length Internal Keel
- Engineered full-length reverse chines
- Single piece hull sides with welded gunnels
- Fully welded external rub rails/hull stiffness
- Anchor rope locker; self-draining with access hatch
- Raised self bailing cockpit deck
- Integrated offshore motor bracket
- Welded bow eye with a stainless sleeve
- 7x 9” custom cast aluminum bow and stern weld on cleats
- Aluminum 1 1/4” bow rail
- Bolt on sacrificial anodes
- Aluminum thru-hull fittings with stainless steel ball valves
- Electronics Features
- Premium dash switch and gauge panel
- Marine color-coded wire harness with water-tight connections
- 1 Electric Rule 2000 gph auto bilge pumps
- High water bilge alarm
- Hella navigation lights package
- Single-engine battery management system with remote panel
- Compact electric horn
- USB outlet
- 1 Group 24 battery
- Console Features
- Fwd facing seating for (2) with a leaning bolster
- Aft facing bench for (2) with storage below
- Custom upholstered seating
- Custom dash panel for flush-mounted electronics
- Cup holders
Diagram
CC22
- Specifications
- LOA (including motor bracket) - 6.85m / 22’5”
- Beam - 2.44m / 8’6”
- Height of sides - 0.61m / 2’2”
- Bottom width - 2.08m / 6’10”
- Approx. Dry Weight - 1988kg / 4800lbs
- Deadrise - Variable 18 deg
- Fuel Capacity - 340L / 90 USG
- Maximum HP - 300 hp
- Aluminum Thickness Bottom (5086) - 1/4”
- Aluminum Thickness Sides (5086) - 3/16”
- Aluminum Thickness Console (5052) - 5/32”
- Console Headroom - 2.3m/6’8”
- Transom Storage Bin Volume - 68 L / 18 USG
- Hull Features
- 5086 Marine grade aluminum hull
- 5052 marine-grade aluminum cabin
- Full-length Internal Keel
- Engineered full-length reverse chines
- Performance lifting strakes
- Single piece hull sides with wide-formed gunnels
- Fully welded external rub rails/hull stiffness
- Anchor rope locker; self-draining with access hatch
- Raised self-bailing cockpit deck
- Raised transom fish/storage locker with drain
- Integrated offshore motor bracket
- Welded bow eye with a stainless sleeve
- 7”x 9” custom cast aluminum bow and stern weld on cleats
- Bolt on sacrificial anodes
- Aluminum thru-hull fittings with stainless steel ball valves
- Aluminum exterior console roof rails
- Welded aluminum bow pulpit
- Electronics Features
- Premium dash switch and gauge panel
- Marine color coded wire harness with water tight connections
- 2 Electric Rule 2000 gph auto bilge pumps
- High water bilge alarm
- Hella navigation lights package
- Lumetic dimmable interior LED lighting
- Single engine battery management system with remote panel
- Lenco 9”x12” electric trim tabs with rocker switch
- Compact electric horn
- USB outlet
- Aft cabin LED decklight
- 1 Group 24 battery
- Console Features
- Forward facing seating for (2) with a leaning bolster
- Aft facing bench for (2) with storage below
- Custom upholstered seating
- Custom dash panel for flush-mounted electronics
- Cup holders
Diagram
CC26
- Specifications
- LOA (including motor bracket) - 8.33m / 27’4”
- Beam - 3.2m / 10’6”
- Height of sides - 0.61m / 2’2”
- Bottom width - 2.08m / 8’10”
- Approx. Dry Weight - 1988kg / 6800lbs
- Deadrise - Variable 20 deg
- Fuel Capacity - 340L / 110 USG
- Maximum HP - 500 hp
- Aluminum Thickness Bottom (5086) - 1/4”
- Aluminum Thickness Sides (5086) - 3/16”
- Aluminum Thickness Console (5052) - 5/32”
- Transom Storage Bin Volume - 68 L / 18 USG
- Console Headroom - 6’8”/2.3 m
- Hull Features
- 5086 Marine grade aluminum hull
- 5052 marine-grade aluminum cabin
- Full-length Internal Keel
- Engineered full-length reverse chines
- Performance lifting strakes
- Single-piece hull sides with wide-formed gunnels
- Fully welded external rub rails/hull stiffness
- Anchor rope locker; self-draining with access hatch
- Raised self-bailing cockpit deck
- Raised transom fish/storage locker with drain
- Integrated offshore motor bracket
- Welded bow eye with a stainless sleeve
- 9”x 9” custom cast aluminum bow and stern weld on cleats
- Bolt-on sacrificial anodes
- Aluminum thru-hull fittings with stainless steel ball valves
- Aluminum exterior console roof rails
- Welded aluminum bow pulpit
- Electronics Features
- Premium dash switch and gauge panel
- Marine color coded wire harness with water tight connections
- 2 Electric Rule 2000 gph auto bilge pumps
- High water bilge alarm
- Hella navigation lights package
- Lumetic dimmable interior LED lighting
- Single engine battery management system with remote panel
- Lenco 9”x12” electric trim tabs with rocker switch
- Compact electric horn
- USB outlet
- Aft cabin LED decklight
- 1 Group 24 battery
- Console Features
- Forward facing seating for (2) with a leaning bolster
- Aft facing bench for (2) with storage below
- Custom upholstered seating
- Custom dash panel for flush-mounted electronics
- Cup holders
- Coating
- 3M Vinyl wrap

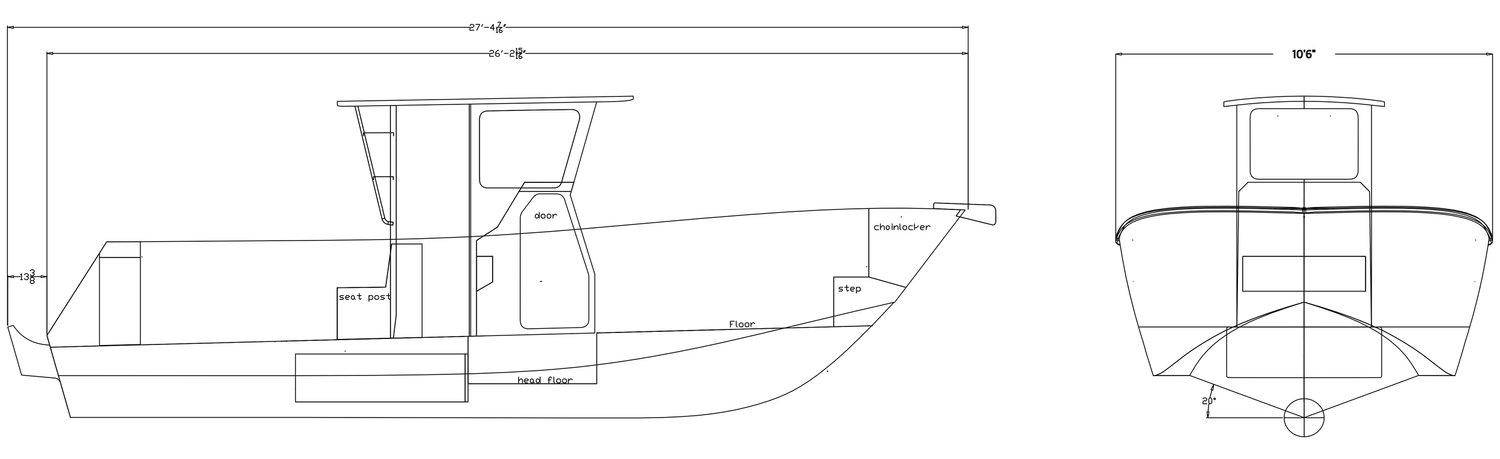

Diagram
