Coastal Explorer Line
A blend of power and efficiency, with a touch of elegance, make up the backbone of the Explorer series. These outboard-powered 23-25ft models are available with a short cabin as a 4-6 passenger vessel or a long cabin as an 8-passenger. This series boasts a fully-loaded cruise speed of 32 knots and a top speed of 48 knots. The refined V-hull slices through the water like a hot knife through butter, keeping you and your crew comfortable and safe when the chop picks up. There is plenty of deck space if you need to take a break from your adventure and get in some fishing. Various cabin/cuddy layouts are available to meet your needs.
Coastal Explorer X23
- Specifications
- LOA (including motor bracket) - 7.01m / 23’2”
- Beam - 2.44m / 8’6”
- Height of sides - 0.61m / 2’2”
- Bottom width - 2.08m / 6’10”
- Approx. Dry Weight - 1988kg / 4800lbs
- Deadrise - Variable 18 deg
- Fuel Capacity - 340L / 90 USG
- Maximum HP - 300 hp
- Aluminum Thickness Bottom (5086) - 1/4”
- Aluminum Thickness Sides (5086) - 3/16”
- Aluminum Thickness Cabin (5052) - 5/32”
- Cockpit Length - 2.54m/8’4”
- Cabin Length - 1.83m/6’
- V-Berth Length - 1.78m/5’10”
- Cabin Headroom - 1.93m/6’4”
- Transom Storage Bin Volume - 68 L / 18 USG
- Hull Features
- 5086 Marine grade aluminum hull
- 5052 Marine-grade aluminum cabin
- Full-length Internal Keel
- Engineered full-length reverse chines
- Performance lifting strakes
- Single-piece hull sides with wide welded gunnels
- Fully welded external rub rails/hull stiffness
- Anchor rope locker; self-draining with access hatch
- Water-tight cabin bulkheads with diamond sea glaze weather-tight door
- Aluminum framed Diamond Sea Glaze side slider safety glass windows with screen.
- Aluminum framed Diamond Sea Glaze aft slider safety glass windows with screen.
- Heavy Duty Ongaro pantographic Windshield wiper
- Raised self bailing cockpit deck
- Raised transom fish/storage locker with drain
- Integrated offshore motor bracket
- Welded bow eye with stainless sleeve
- 9”x 9” custom cast aluminum bow and stern weld on cleats
- Aluminum 1 1/4” bow rail
- Bolt-on sacrificial anodes
- Aluminum thru-hull fittings with stainless steel ball valves
- Aluminum exterior cabin roof rails
- Welded aluminum bow pulpit
- Electronics Features
- Premium dash switch and gauge panel
- Marine color coded wire harness with water tight connections
- 2 Electric Rule 2000 gph auto bilge pumps
- High water bilge alarm
- Hella navigation lights package
- Lumetic dimmable interior LED lighting
- Single engine battery management system with remote panel
- Lenco 9”x12” electric trim tabs with rocker switch
- Compact electric horn
- USB outlet
- Aft cabin LED decklight
- Cabin
- Shockwave S5 suspension module with Tempress Probax helm seat on slider
- Shockwave S5 suspension module with Tempress Probax navigator seat
- Custom upholstered aft bench seating port and stbd
- Premium handcrafted black walnut storage cabinets with 5 drawers and stainless latches
- Custom dash panel for flush mounted electronics
- Easy care marine vinyl floor
- Cup holders
- Soft touch headliner
- Soft touch wall panels
- Custom defrost system
- Coating
- Zolatone cabin walls & interior
- Zolatone cuddy walls
- Easy care marine vinyl interior floor
- 3M vinyl wrap cowling & dodger

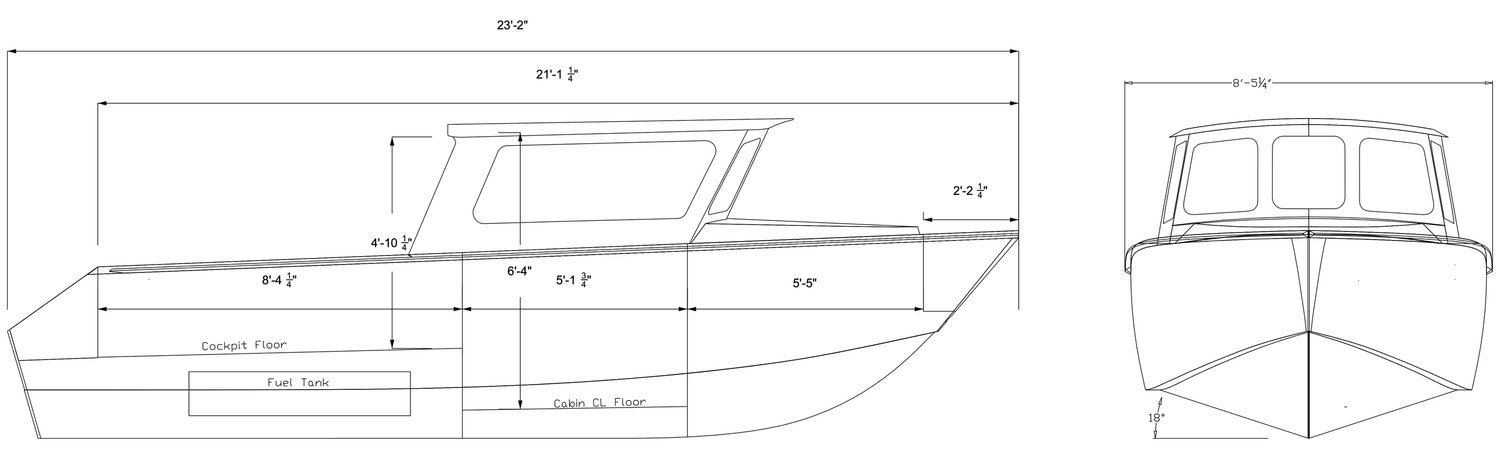

Diagram
Coastal Explorer X25
- Specifications
- LOA (including motor bracket) - 7.72m / 25’4”
- Beam - 2.44m / 8’6”
- Height of sides - 0.61m / 2’2”
- Bottom width - 2.08m / 6’10”
- Approx. Dry Weight - 2404kg / 5300lbs
- Loaded Weight - 3311kg / 7300lbs
- Deadrise - Variable 18 deg
- Fuel Capacity - 454L / 120 USG
- Maximum HP - 400 hp
- Aluminum Thickness Bottom (5086) - 1/4”
- Aluminum Thickness Sides (5086) - 3/16”
- Aluminum Thickness Cabin (5052) - 5/32”
- Cockpit Length - 2.54m / 8’4”
- Cabin Length - 1.88m / 6’2”
- V-Berth Length - 1.96m / 6’5”
- Cabin Headroom - 1.93m / 6’4”
- Transom Storage Bin Volume - 68 L / 18 USG
- Max Speed (Half Load - 74 kph / 46 mph
- Max Cruise Speed (Half Load) - 56 kph / 35 mph
- Hull Features
- 5086 Marine grade aluminum hull
- 5052 marine grade aluminum cabin
- Full length Internal Keel
- Engineered full length reverse chines
- Performance lifting strakes
- Single piece hull sides with wide welded gunnels
- Fully welded external rub rails / hull stiffness
- Anchor rope locker; self draining with access hatch
- Watertight cabin bulkheads with diamond sea glaze weather tight door
- Aluminum framed Diamond Sea Glaze side slider safety glass windows with screen
- Aluminum framed Diamond Sea Glaze aft slider safety glass windows with screen
- Heavy Duty Ongaro pantographic Windshield wiper
- Raised self bailing cockpit deck
- Raised transom fish / storage locker with drain
- Integrated offshore motor bracket
- Welded bow eye with stainless sleeve
- 7x 9” custom cast aluminum bow and stern weld on cleats
- Aluminum 1 1/4” bow rail
- Bolt on sacrificial anodes
- aluminum thru-hull fittings with stainless steel ball valves
- Aluminum exterior cabin roof rails
- Welded aluminum bow pulpit
- Electronics Features
- Premium dash switch and gauge panel
- Marine color coded wire harness with water tight connections
- 2 Electric Rule 2000 gph auto bilge pumps
- High water bilge alarm
- Hella navigation lights package
- Lumetic dimmable interior LED lighting
- Single engine battery management system with remote panel
- Lenco 9”x12” electric trim tabs with rocker switch
- Compact electric horn
- USB outlet
- Aft cabin LED decklight
- Cabin
- Shockwave S5 suspension module with Tempress Probax helm seat on slider
- Shockwave S5 suspension module with Tempress Probax navigator seat
- Custom upholstered aft bench seating port and stbd
- Premium handcrafted black walnut storage cabinets with 5 drawers and stainless latches
- Custom dash panel for flush mounted electronics
- Easy care marine vinyl floor
- Cup holders
- Soft touch headliner
- Soft touch wall panels
- Custom defrost system
- Coating
- Zolatone cabin walls & interior
- Zolatone cuddy walls
- Easy care marine vinyl interior floor
- 3M vinyl wrap cowling & dodger

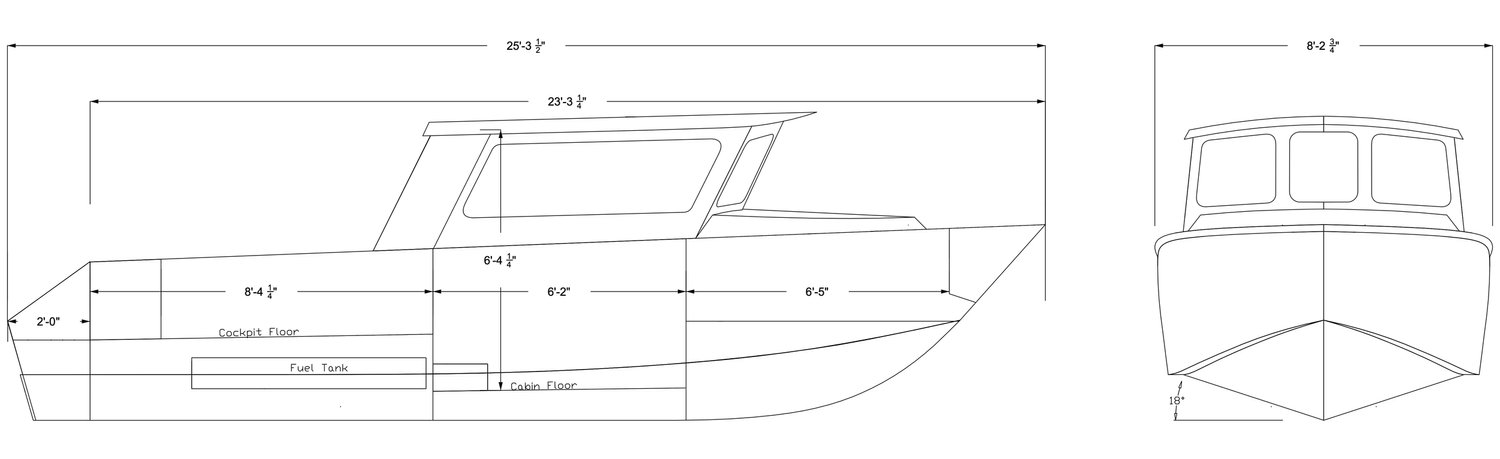

Diagram
Coastal Explorer X25EX
- Specifications
- LOA (including motor bracket) - 7.72m / 25’4”
- Beam - 2.44m / 8’6”
- Height of sides - 0.61m / 2’2”
- Bottom width - 2.08m / 6’10”
- Approx. Dry Weight - 2495kg / 5500lbs
- Loaded weight - 3400kg / 7500lbs
- Deadrise - Variable 18 deg
- Fuel Capacity - 454L / 120 USG
- Maximum HP - 400 hp
- Aluminum Thickness Bottom (5086) - 1/4”
- Aluminum Thickness Sides (5086) - 3/16”
- Aluminum Thickness Cabin (5052) - 5/32”
- Cockpit Length - 2.54m / 8’4”
- Cabin Length - 2.49m / 8’2”
- V-Berth Length - 1.96m / 6’5”
- Cabin Headroom - 1.93m / 6’4”
- Transom Storage Bin Volume - 68 L / 18 USG
- Max Speed (Half Load) - 74 kph / 46 mph
- Max Cruise Speed (Half Load) - 56 kph / 35 mph
- Hull Features
- 5086 Marine grade aluminum hull
- 5052 Marine grade aluminum cabin
- Full length Internal Keel
- Engineered full length reverse chines
- Performance lifting strakes
- Single-piece hull sides with wide welded gunnels
- Fully welded external rub rails / hull stiffness
- Anchor rope locker; self draining with access hatch
- Water tight cabin bulkheads with diamond sea glaze weather tight door
- Aluminum framed Diamond Sea Glaze side slider safety glass windows with screen
- Aluminum framed Diamond Sea Glaze aft slider safety glass windows with screen
- Heavy Duty Ongaro pantographic Windshield wiper
- Raised self bailing cockpit deck
- Raised transom fish / storage locker with drain
- Integrated offshore motor bracket
- Welded bow eye with stainless sleeve
- 7x 9” custom cast aluminum bow and stern weld on cleats
- Aluminum 1 1/4” bow rail
- Bolt on sacrificial anodes
- Aluminum thru-hull fittings with stainless steel ball valves
- Aluminum exterior cabin roof rails
- Welded aluminum bow pulpit
- Electronics Features
- Premium dash switch and gauge panel
- Marine color coded wire harness with water tight connections
- 2 Electric Rule 2000 gph auto bilge pumps
- High water bilge alarm
- Hella navigation lights package
- Lumetic dimmable interior LED lighting
- Single engine battery management system with remote panel
- Lenco 9”x12” electric trim tabs with rocker switch
- Compact electric horn
- USB outlet
- Aft cabin LED decklight
- Cabin
- Shockwave S5 suspension module with Tempress Probax helm seat on slider
- Shockwave S5 suspension module with Tempress Probax navigator seat
- Custom upholstered aft bench seating port and stbd
- Premium handcrafted black walnut storage cabinets with 5 drawers and stainless latches
- Custom dash panel for flush mounted electronics
- Easy care marine vinyl floor
- Cup holders
- Soft touch headliner
- Soft touch wall panels
- Custom defrost system
- Coating
- Zolatone cabin walls & interior
- Zolatone cuddy walls
- Easy care marine vinyl interior floor
- 3M vinyl wrap cowling & dodger

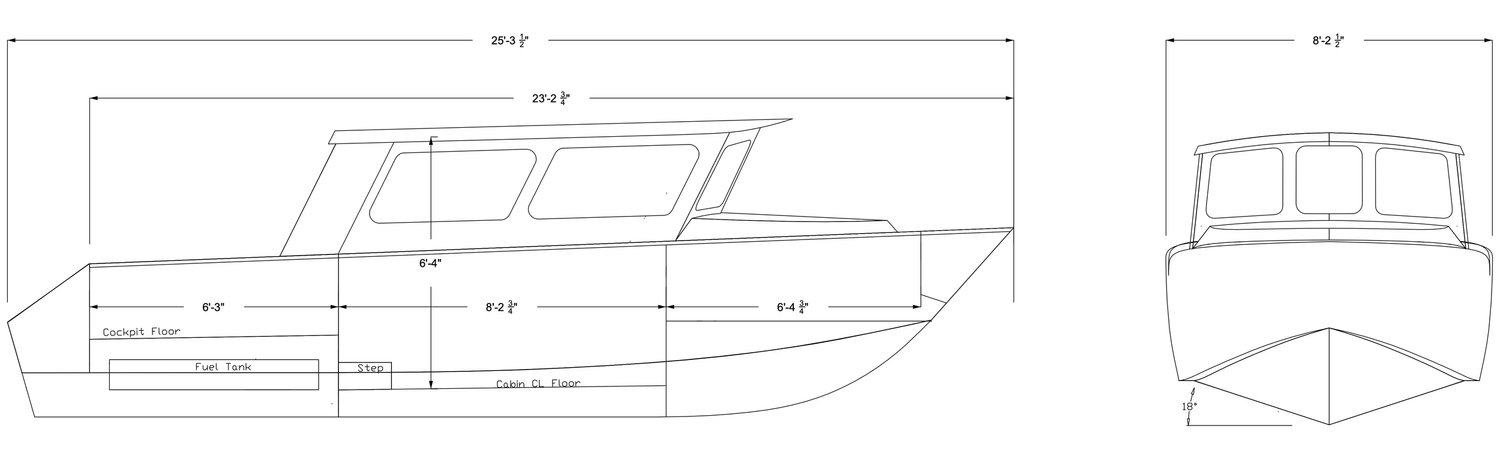

Diagram
